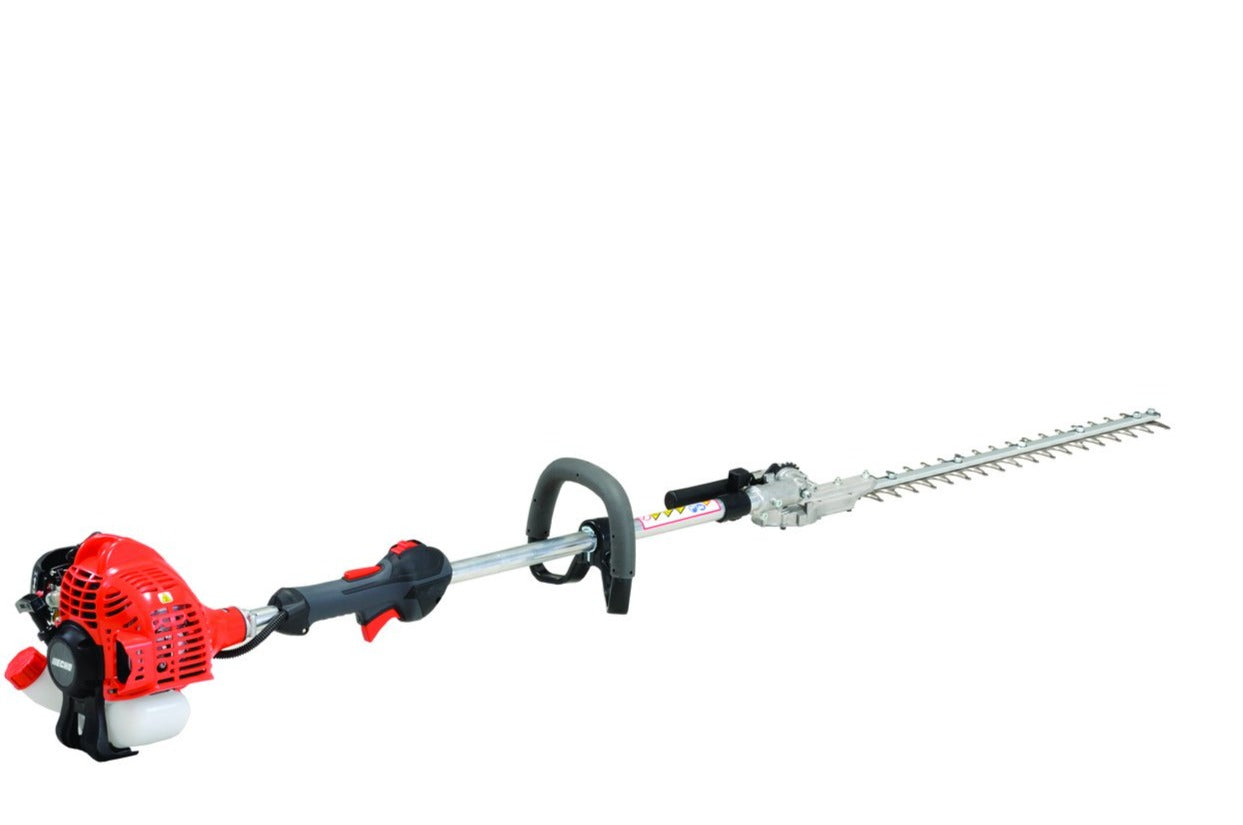

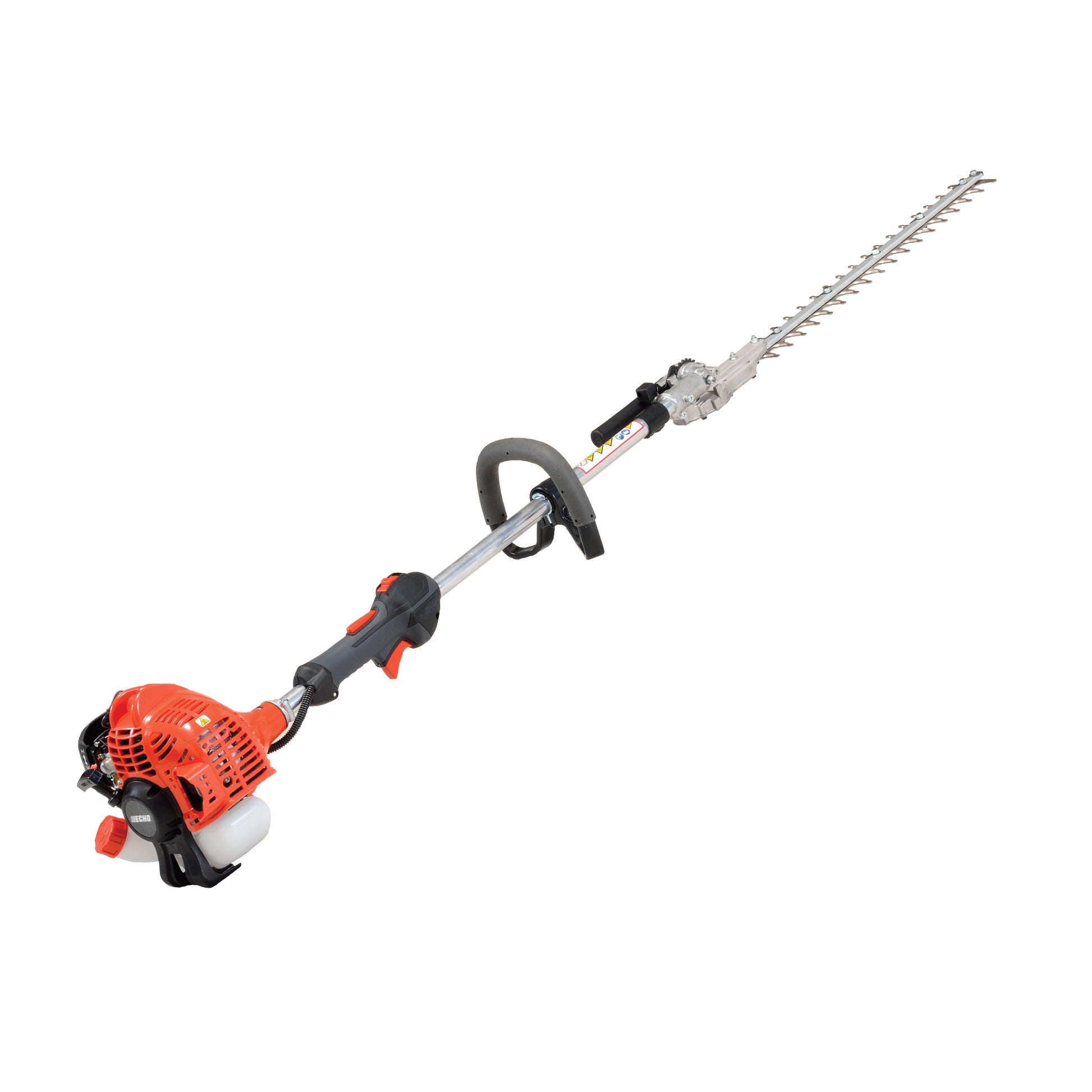

The HCAS-236ES LW is an ultra-lightweight articulating hedge cutter with a lightweight gearcase, light and durable cutter blade assembly and easy one-handed blade angle adjustment.
It features low vibration technology, a 21.2cc engine and Easy Start for easy starting. With a 519mm cutter that can be rotated through 90°, it’s ideal for trimming tall and wide hedges.
Specification
| Engine displacement (cm³) | 21.2 |
|---|---|
| Output (kw) | 0.7 |
| Output (ps) | 1.0 |
| Dry Weight (kg) (undefined) | 6.2 |
| Overall Length (mm) (undefined) | 2407 |
| Fuel Tank Capacity (ml) | 440 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.45 |
| Start Assist System | ES-start |
| Cutter Type | Double |
| Cutting Length (mm) (undefined) | 519 |
| Cutter Pitch (mm) (undefined) | 30 |
| Cutter Clearance | Adjustable |
| Stroke Rate (cuts/min) | 3900 |
| Vibration Front handle/Rear handle (m/s²) | 4.1 / 3.7 |
| Sound pressure level (dB(A)) | 95.5 |
| Sound power level (dB(A)) | 106.7 |
| CO² (g/kW・h) | 1180 |
Features
Clean Finishing
Designed for clean and precise cutting.
Ergonomics
Designed to maximise efficiency and comfort.
Easy start engine
ECHO’s patented system for effortless starting.
